Hund

How to enable real transparency for Conky

June 9, 2024

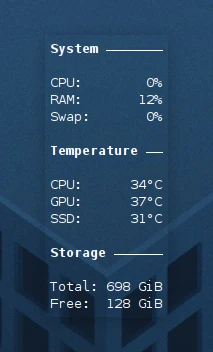

I recently started using Conky for the first time, in what feels forever. It was quick and easy to setup, except for one thing; getting real transparency to work. See this example image of how it looked before I got it working.

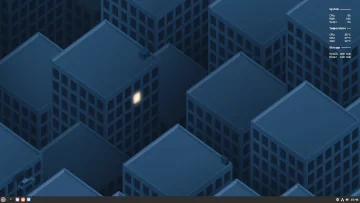

My simple setup with Conky

I remeber having the same issue with Conky the first time I tried it almost two decades ago. Thankfully. After trying a billion sugetions from various Internet forums, I found a solution that actually worked.

I found the solution on the Arch Linux wiki page for Conky. I simply had to make sure to have these settings:

 conky.config = {
    own_window = true,
    own_window_transparent = true,
    own_window_argb_visual = true,
    own_window_type = 'desktop',
 }

Don’t forget that for real transparency to work, you must have a composite manager running.

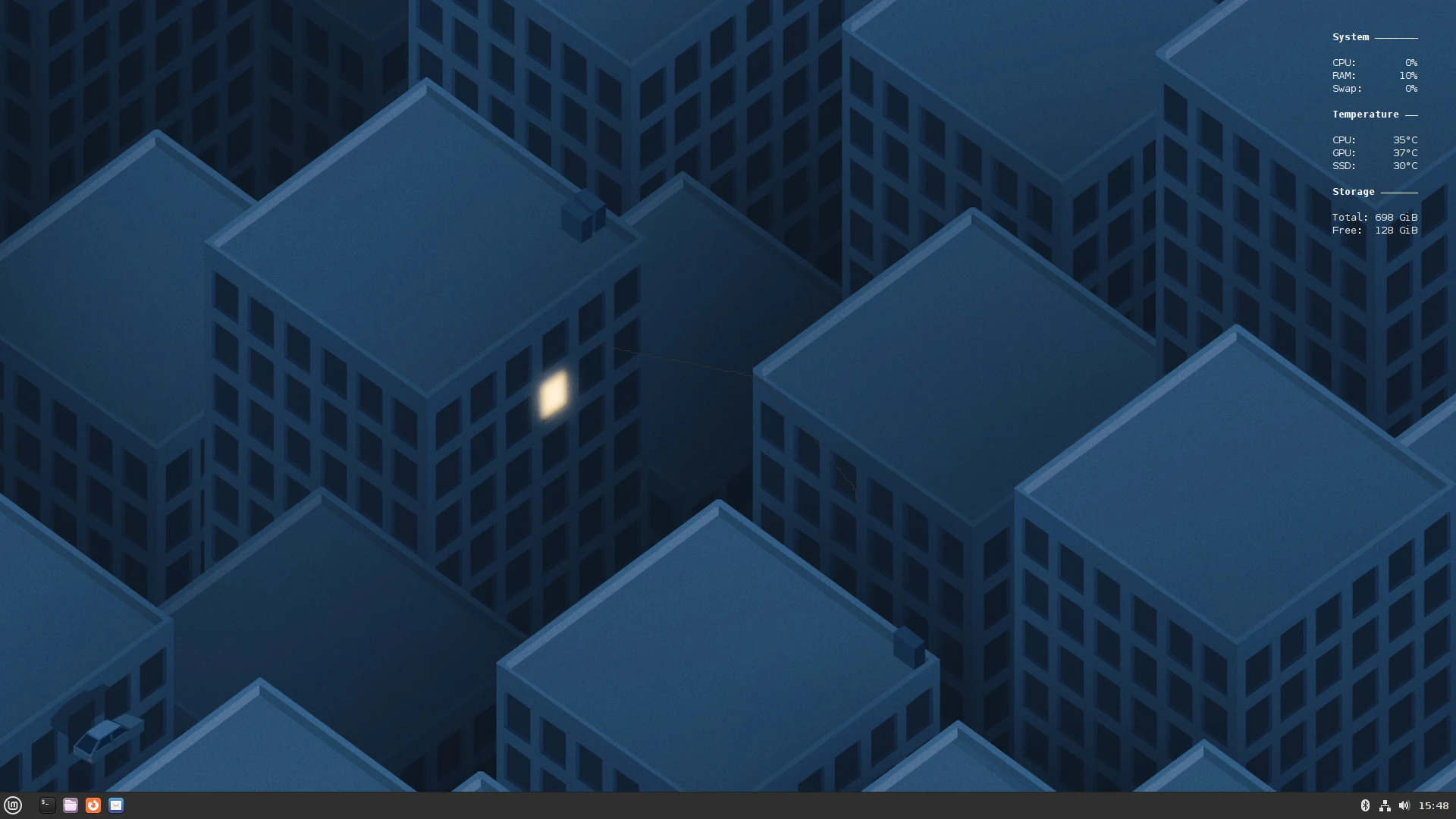

My Conky configuration

If you would like to copy my simple configuration:

conky.config = {
    alignment = 'top_right',
    cpu_avg_samples = 2,
    default_color = 'white',
    double_buffer = true,
    extra_newline = false,
    font = 'DejaVu Sans Mono:size=10',
    gap_x = 50,
    gap_y = 40,
    minimum_height = 5,
    minimum_width = 5,
    net_avg_samples = 2,
    no_buffers = true,
    out_to_x = true,
    own_window = true,
    own_window_class = 'Conky',
    own_window_type = 'desktop',
    own_window_transparent = true,
    own_window_argb_visual = true,
    show_graph_range = false,
    show_graph_scale = false,
    update_interval = 1.0,
    use_spacer = 'none',
    use_xft = true,
}

conky.text = [[
${font Mono:style=Bold:size=10}System $hr${font}

CPU: $alignr$cpu%
RAM: $alignr$memperc%
Swap: $alignr$swapperc%

${font Mono:style=Bold:size=10}Temperature $hr${font}

CPU: $alignr${hwmon 2 temp 1}°C
GPU: $alignr${execi 30 sensors amdgpu-pci-0d00 | grep "junction:" | awk '{print $2}' | sed 's/+//;s/\..*$//'}°C
SSD: $alignr${execi 30 sensors nvme-pci-0100 | grep "Composite:" | awk '{print $2}' | sed 's/+//;s/\..*$//'}°C

${font Mono:style=Bold:size=10}Storage $hr${font}

Total: $alignr${fs_size /}
Free: $alignr${fs_free /}
]]
